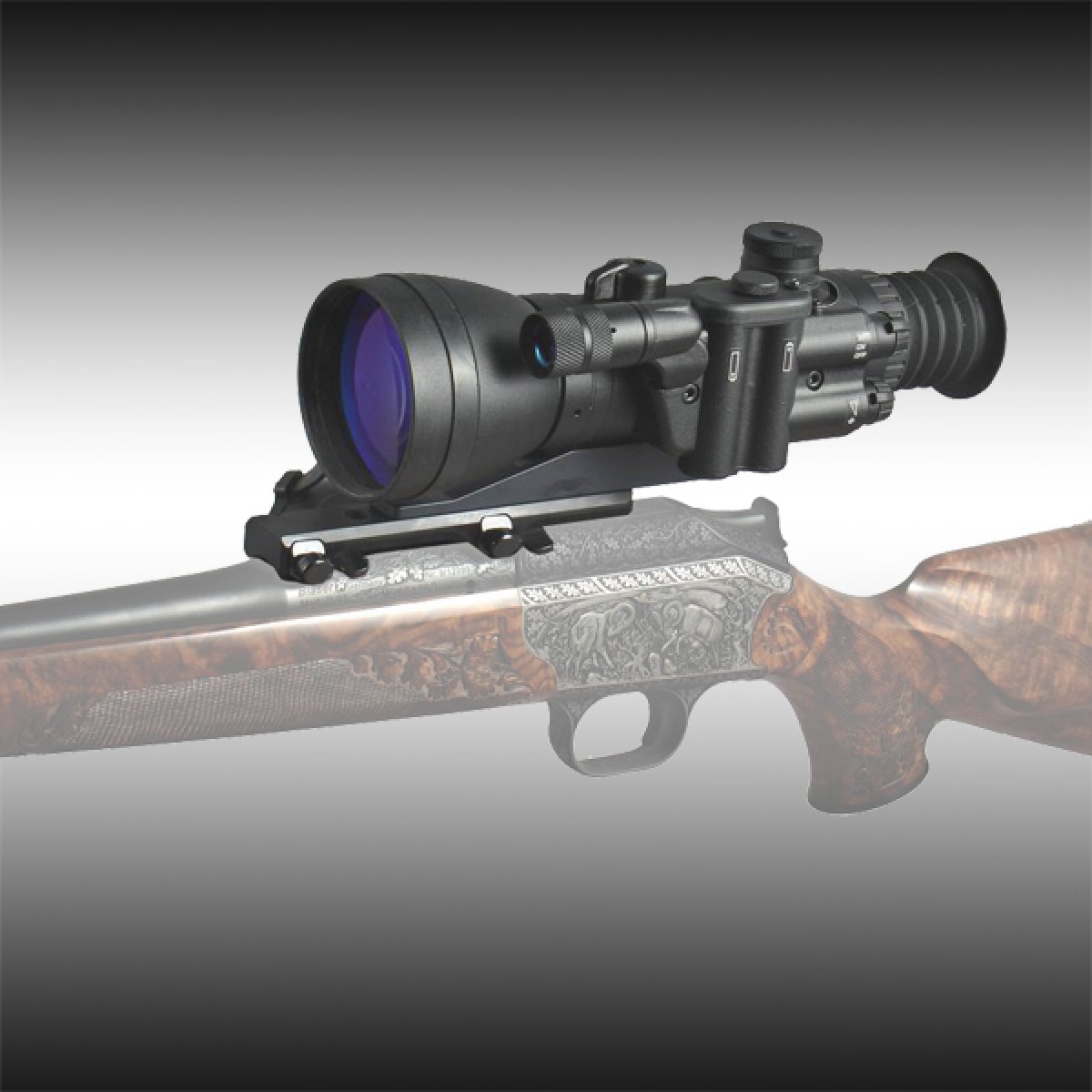

Night vision riflescope Dedal-480-DK3(110)

Night vision riflescope Dedal-480-DK3(110)

Dedal-480 series is compact and at the same time powerful night sights with the established image intensifier tubes of Gen.II +, III or XR-5. Strong, completely metal case reliably fixes the tube during shooting on big calibers (.375H&H, .50BMG) and at the same time allows to keep small weight of a sight. Exit pupil removal makes 50-90 mm, that allows to provide safe shooting on big calibers without loss of quality. The aiming is carried out with the help of the Mil-Dot type reticle, allowing to determine the distance to animal through the reticle, knowing his approximate sizes. Brightness of a luminescence of reticle is smoothly regulated. The sight has a right control switching toggles, which is habitual for the majority of hunters. There is powerful build-in diode IR-illuminator in this model. It has variable power and luminescence spot, safe for vision. The IR also is regulated in the vertical plane, that allows to exclude in some cases harmful lateral flares from trees (a grass, etc.). The mount for the gun is delivered, as a rule, without rigid mounting to the sight housing, that allows to realize special adaptation of the device to concrete model of the gun.

(21%): 6 292
5 200
: out of stock
ks
  • 3.9x magnification
  • Gen. III
  • Shockproof with heavy recoil (incl. .50 cal.)
  • Special high light transmission optics
  • Long eye relief
  • Precision MIL-DOT reticle with adjustable brightness

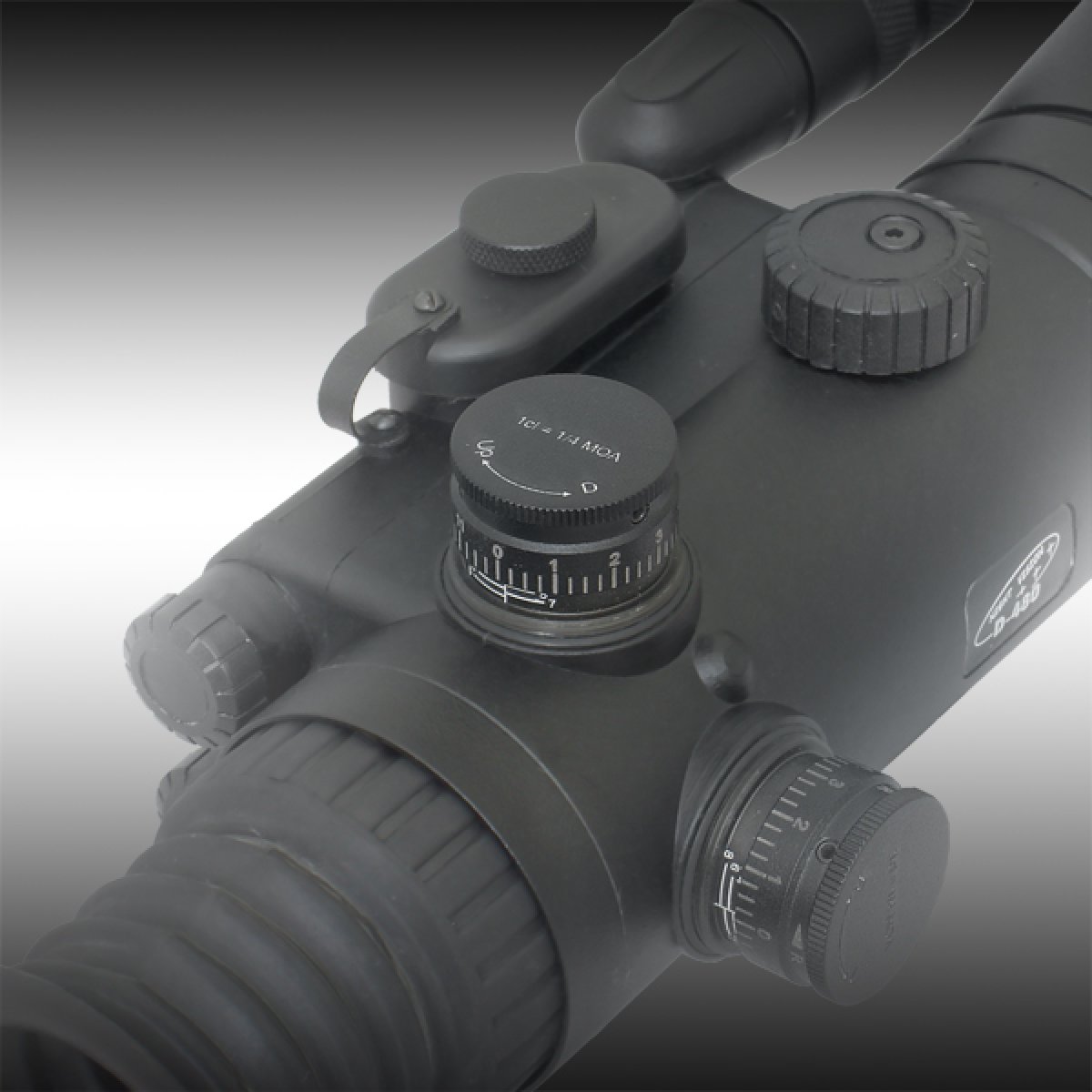

  • Precision tactical windage/elevation adjustment (1/4 up to 1/2 MOA or 6 mm /100 m)

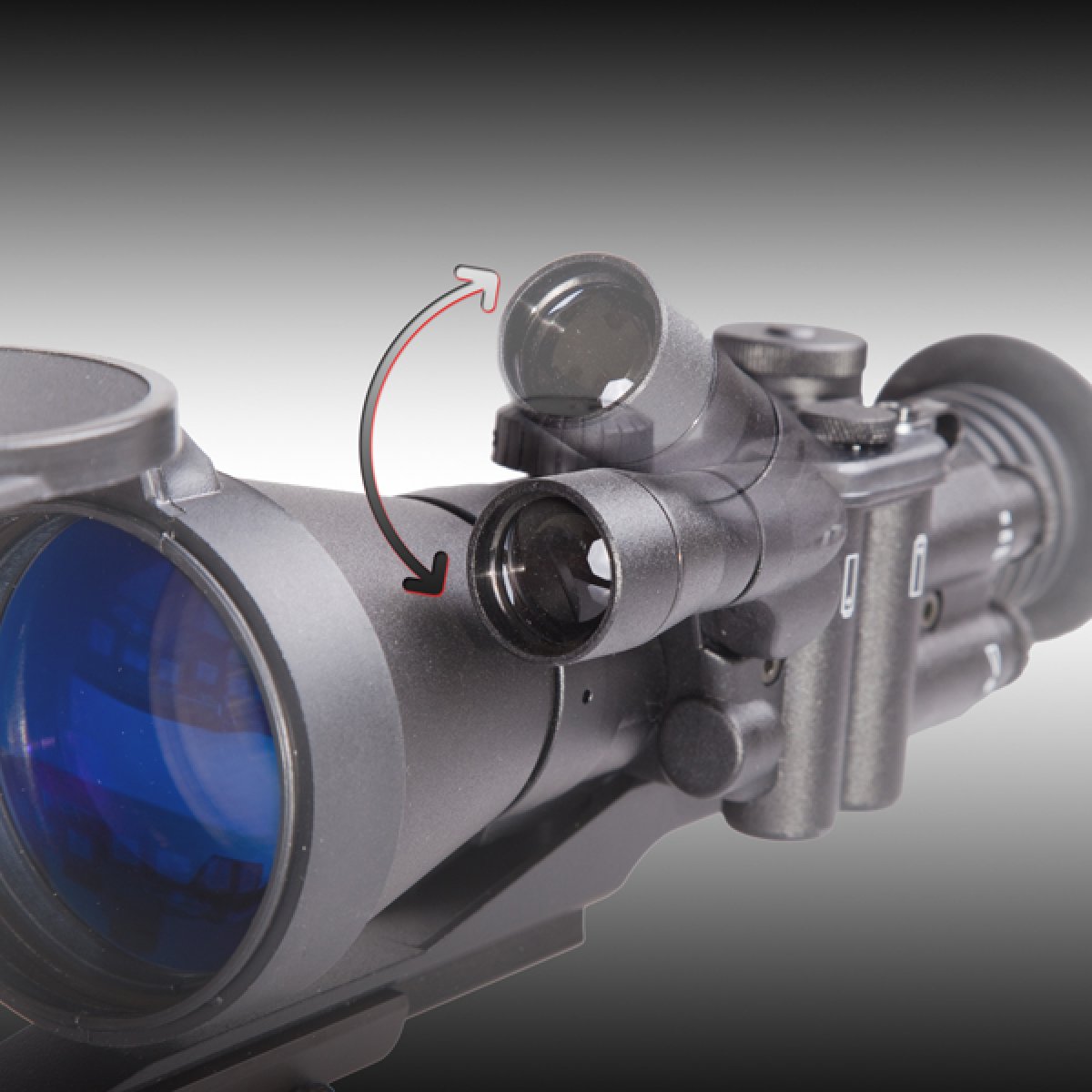

  • Powerful hazard-free IR illuminator(75 mW)
  • Wide range of mounts
  • Waterproof / Water resistance
  • Extremely light weight
The image intens. tube
Gen.         III
Photosensiviti, μA/Lm       min. 1800
Gain         25000-45000
Resolution, pl/mm       min.64

General
Magnification, x       3.9
Objective lens       110mm.HC.F/1.6
Eye relief distance, mm     45
Field of view, degree     9.0
Diopter setting, D       -3, +4

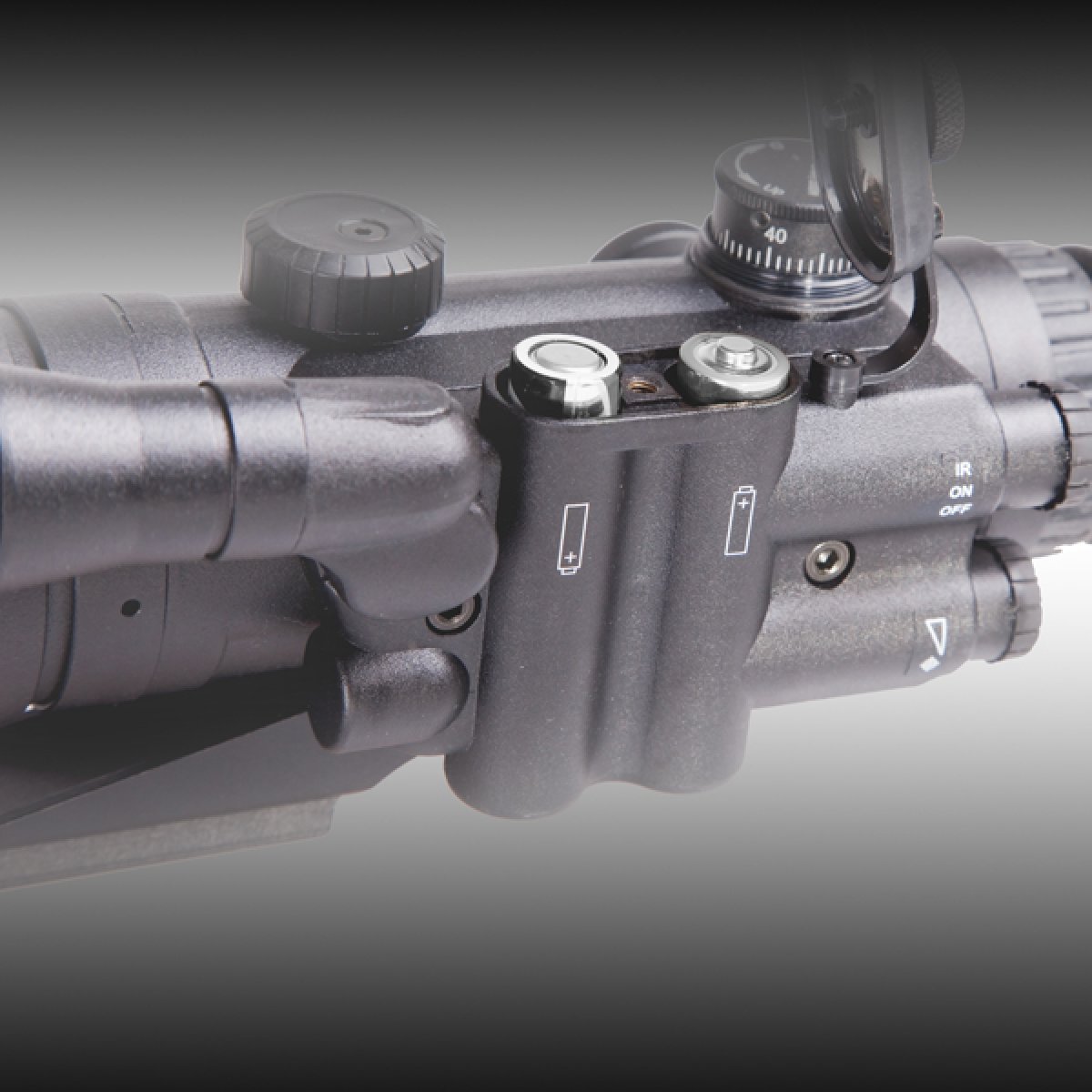

Power supply       AA battery - 2pc.
Battery life, hrs       min. 60
Operating temperature, C     up -40 to +50
Relative humidity, %       98%
Dimension, mm       235x98x80
Weight, kg       0,9
Feed voltage, V       3
